Traffic warning trailer – VW 1300 P

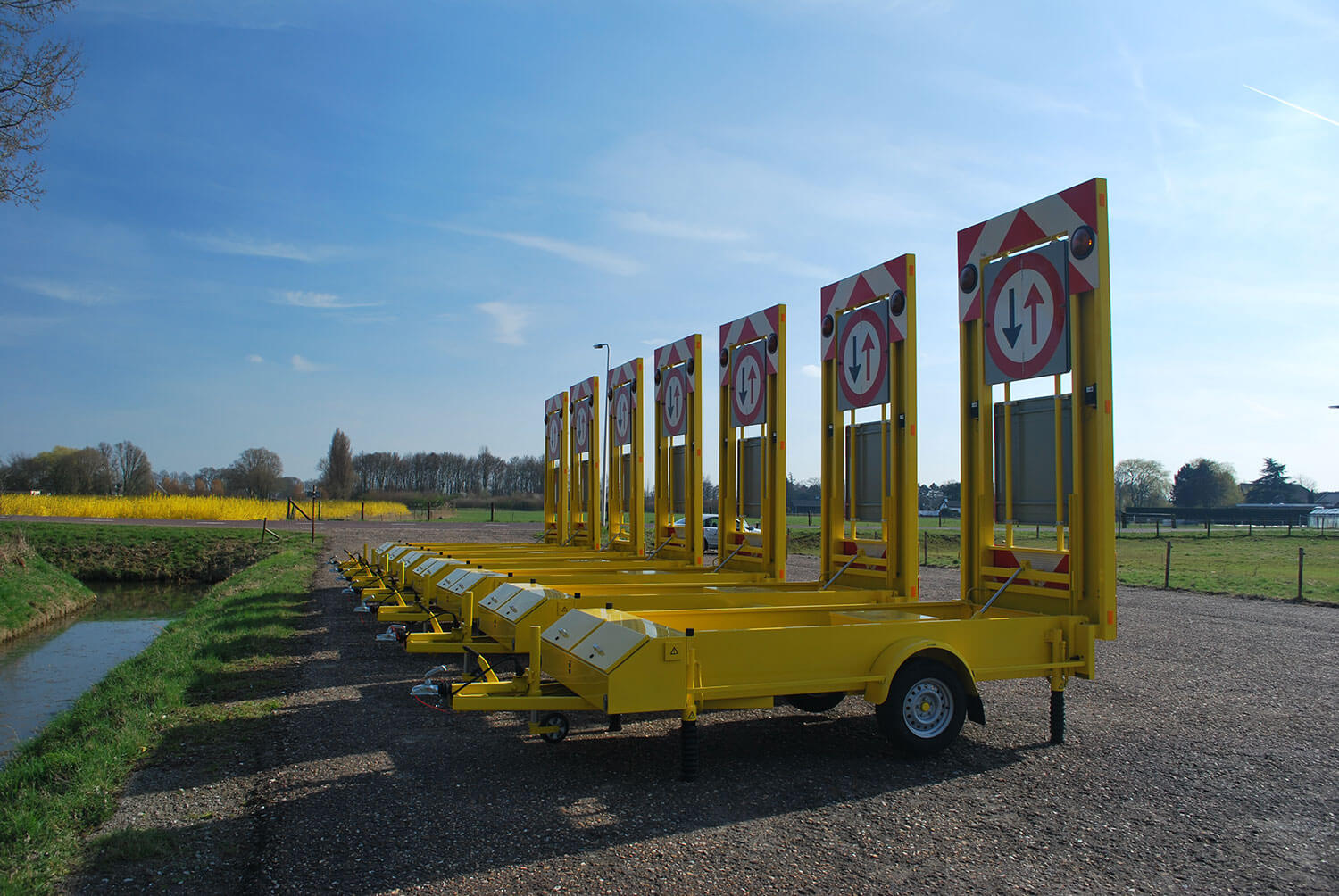

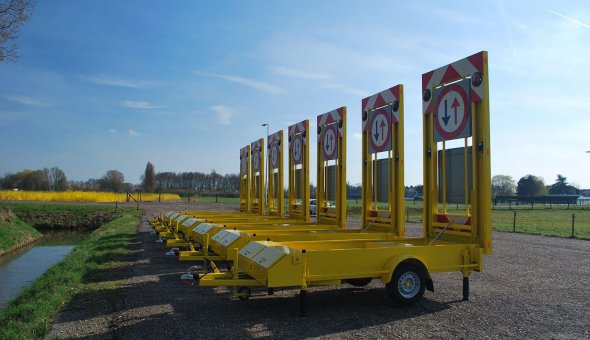

A traffic warning trailer is used to optimise the traffic flow, reduce the chance of traffic jams and increase the safety of road workers and motorists in case of calamities, roadworks or other reasons that require the motorists to be informed. The traffic warning trailer can be used both inside and outside urban areas, as well as on highways.

Good control increases safety

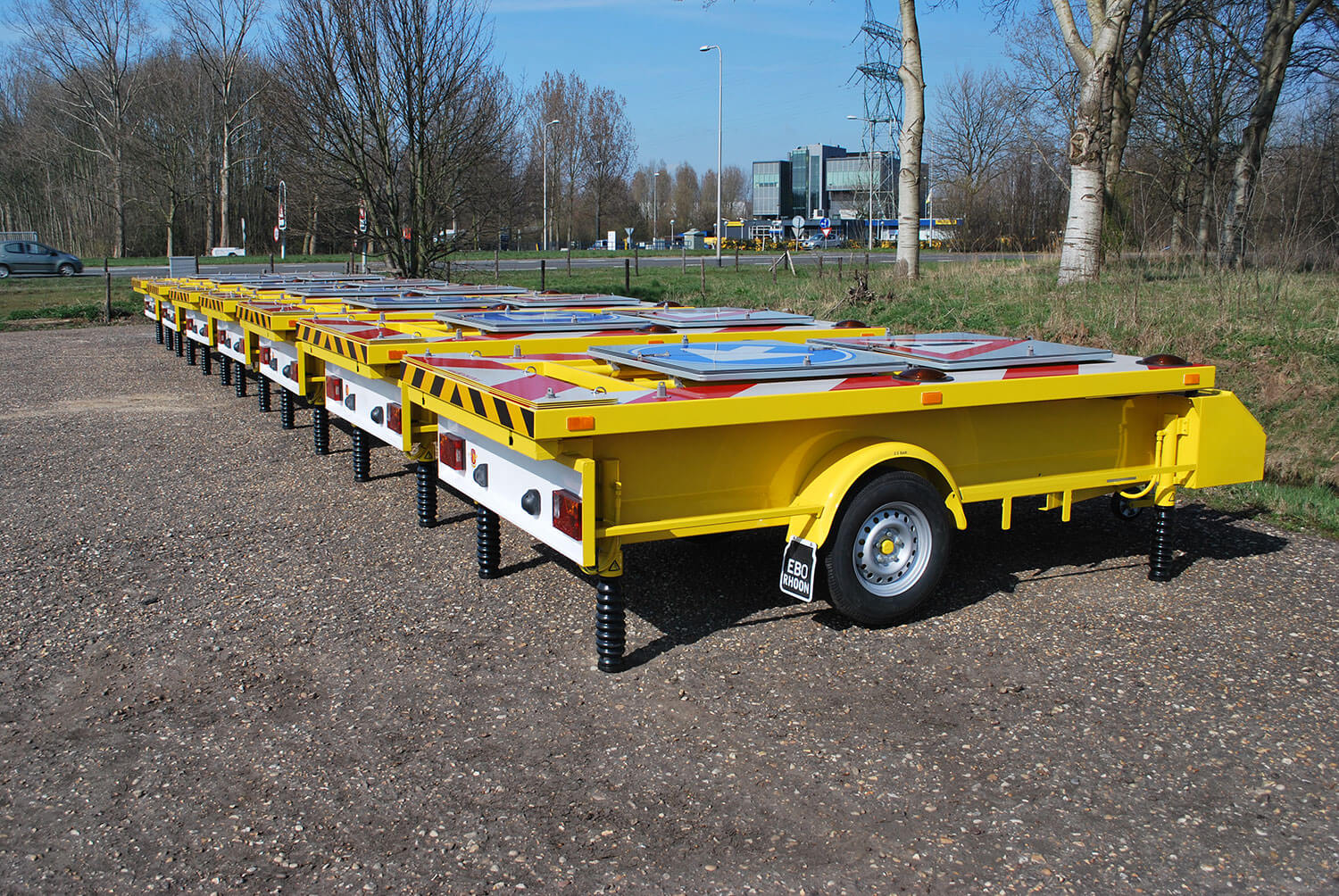

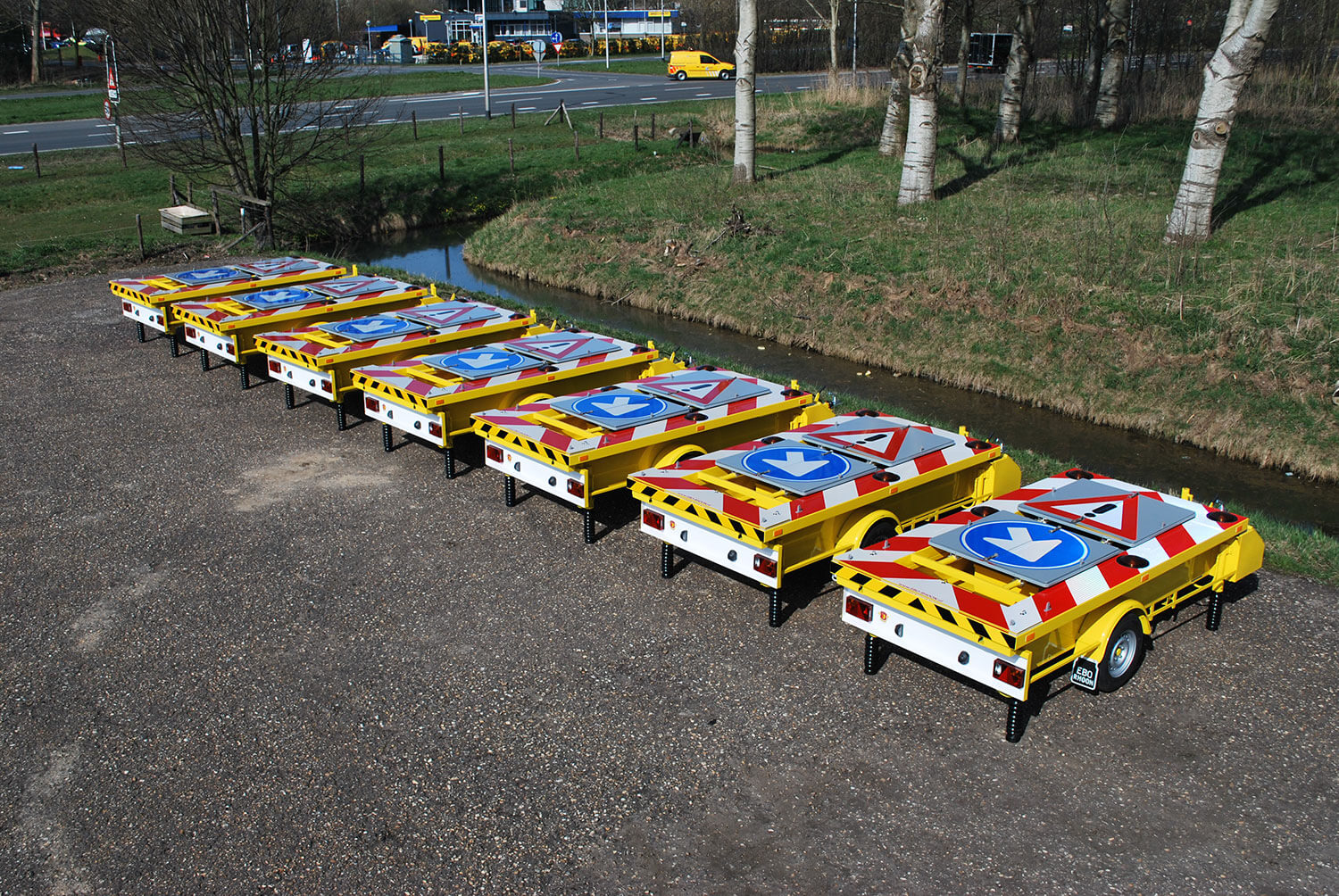

Our traffic warning trailer can be operated and transported without effort. It is a single axle trailer and is therefore lightweight.

The traffic warning trailer is equipped with emergency control, which makes it possible to perform all hydraulic operations without power from the vehicle and therefore the trailer can be made ready for transport in all circumstances.

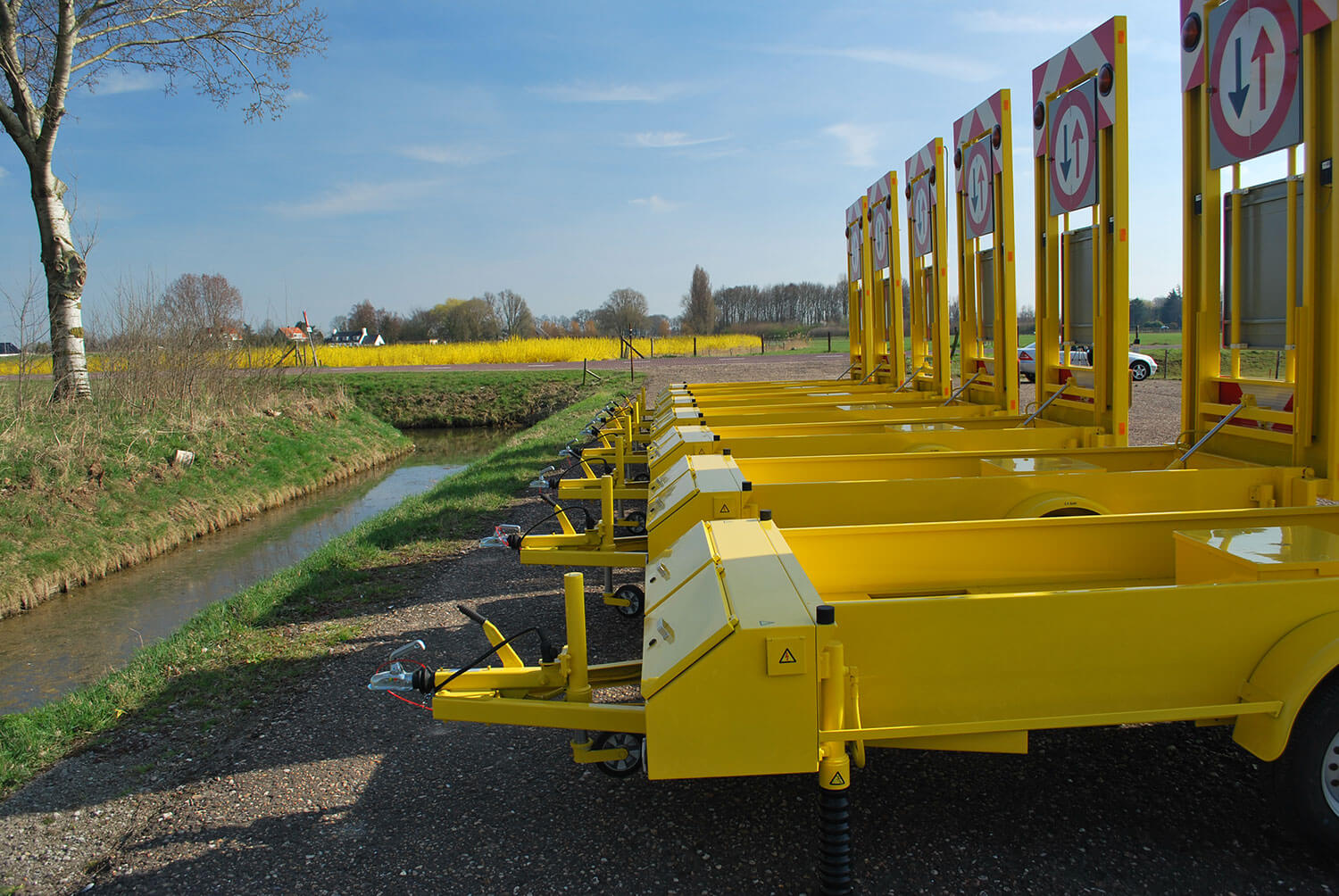

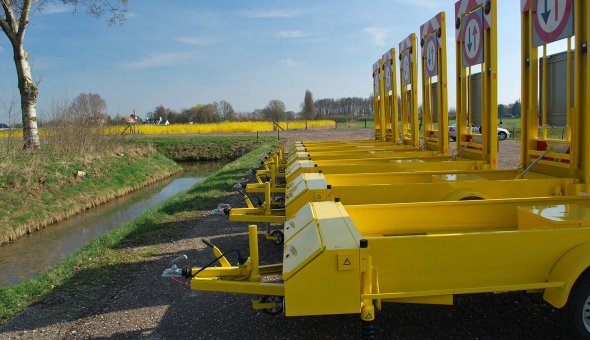

Arrow traffic warning trailer for Traffic management during road works

Produced in accordance with CE, EC and CROW regulations

Our arrow warning trailer – solar is completely produced in accordance with CROW directives, guaranteeing the quality of e.g. the reflection, emergency control and hydraulic components. Furthermore, do our arrow warning trailers have an EC type approval for the axles and suspension, which makes it possible to apply for a registration number in all European countries, and a CE marking, which ensures that our arrow warning trailer complies with all relevant European legal requirements.

VMS-trailer applies to the ECE approval and CE-marking

All configurations possible

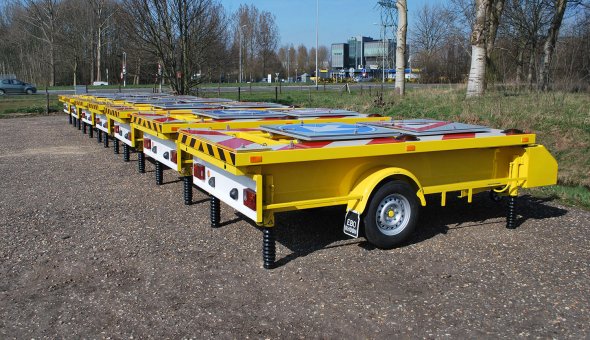

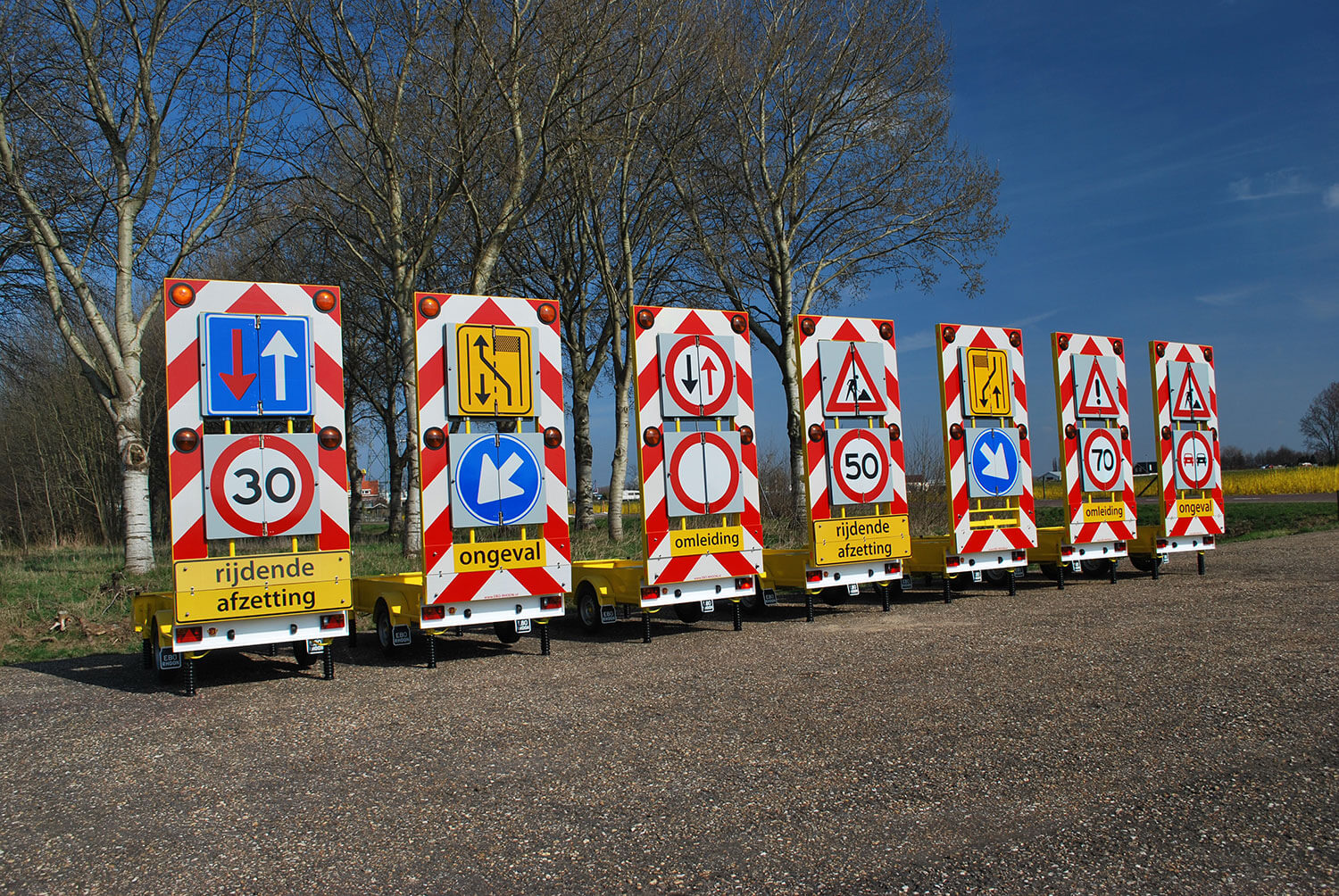

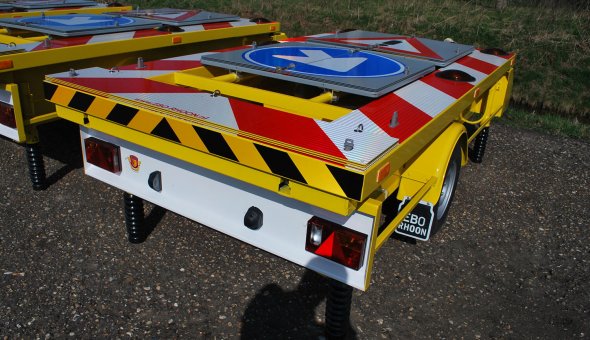

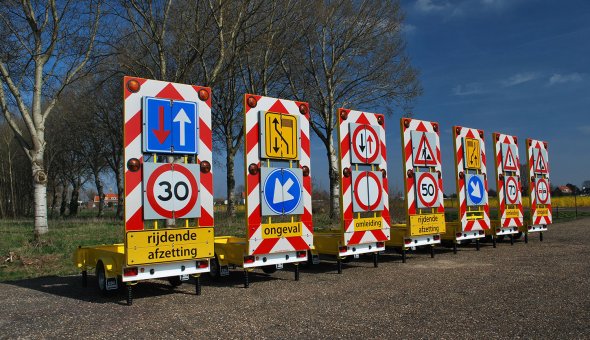

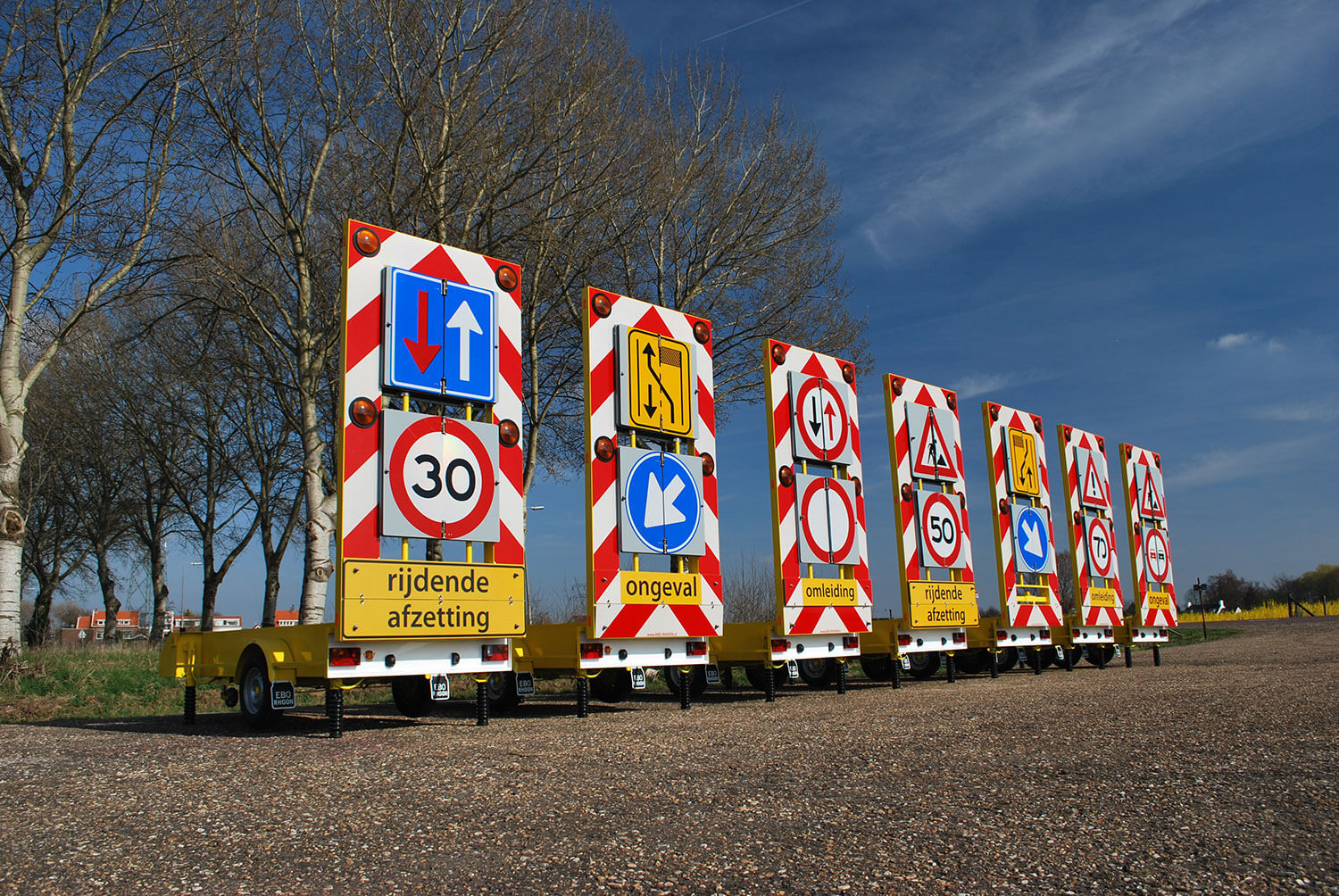

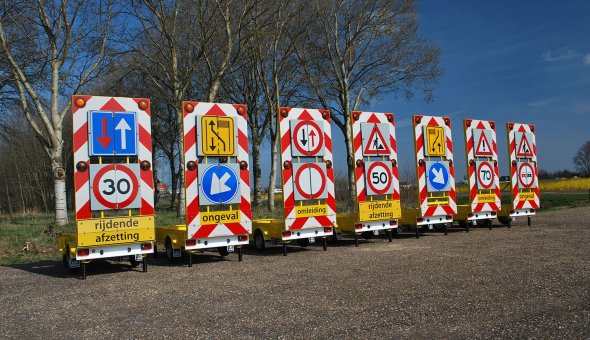

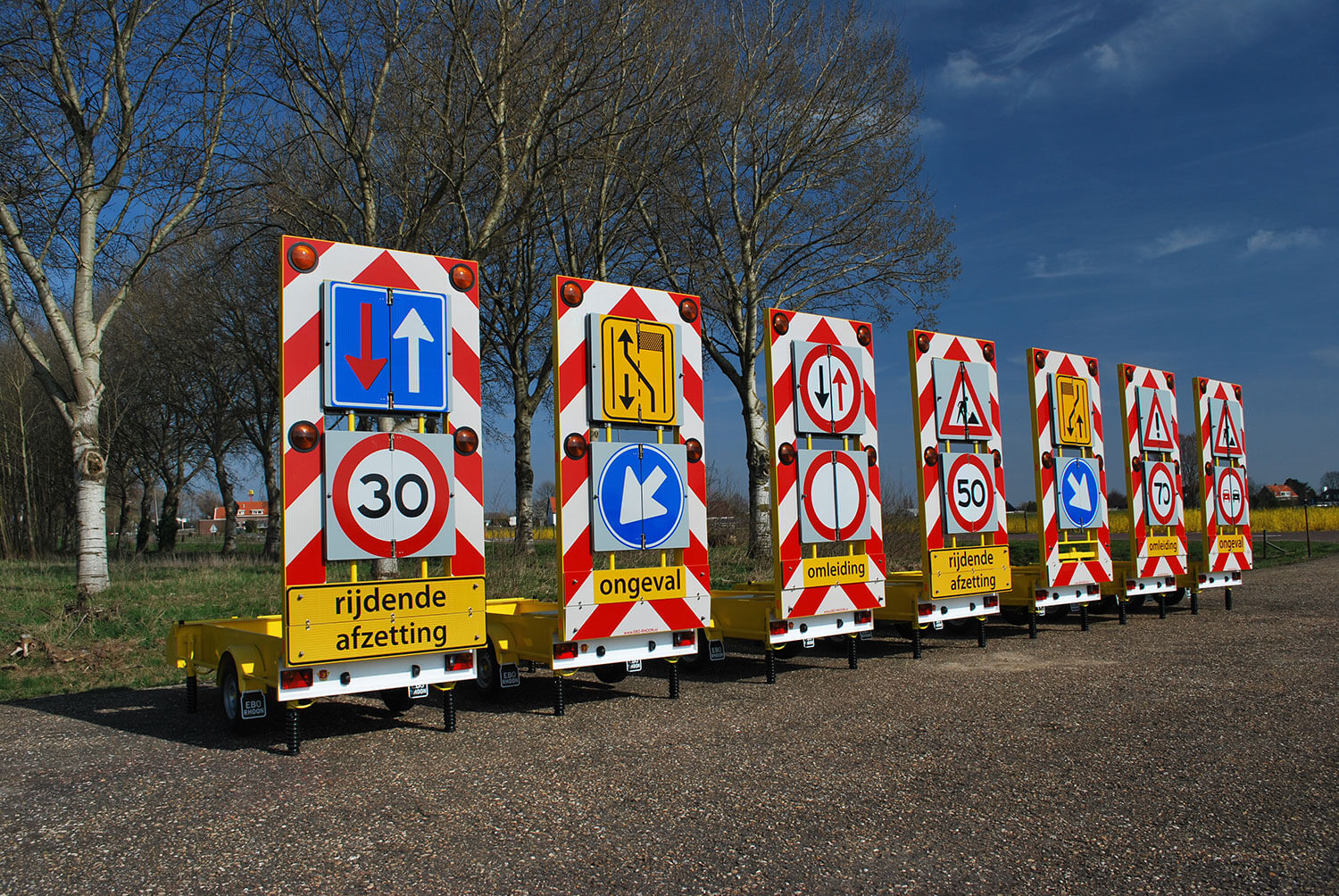

Four alternating lamps, multiple traffic signs and a supplementary traffic sign are installed on the frame of the traffic warning trailer. Which (supplementary) traffic signs are installed on our traffic warning trailer is up to our customers. Optionally, two additional alternating lamps can be mounted on the rear side of the frame for enhanced visibility for approaching motorists.

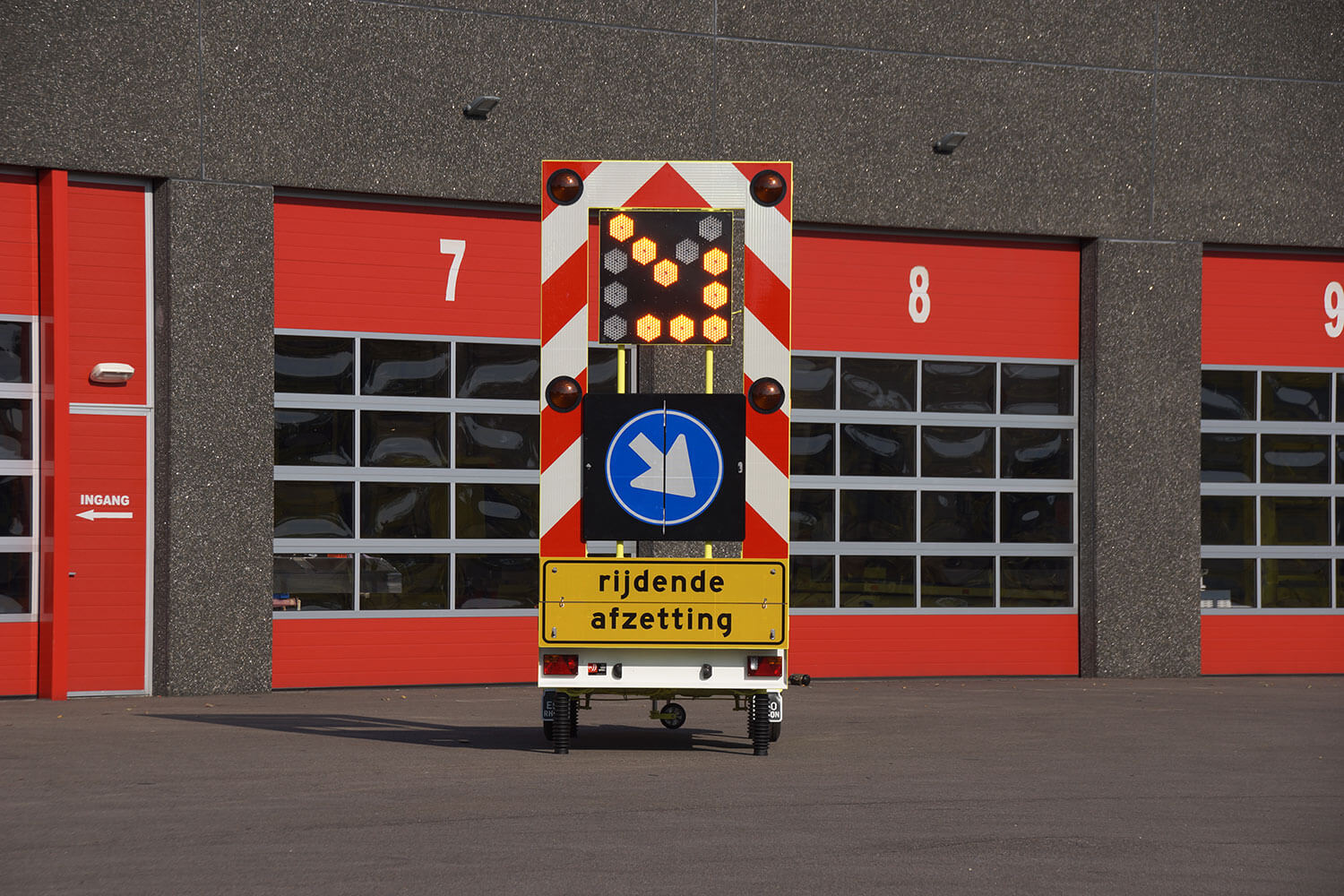

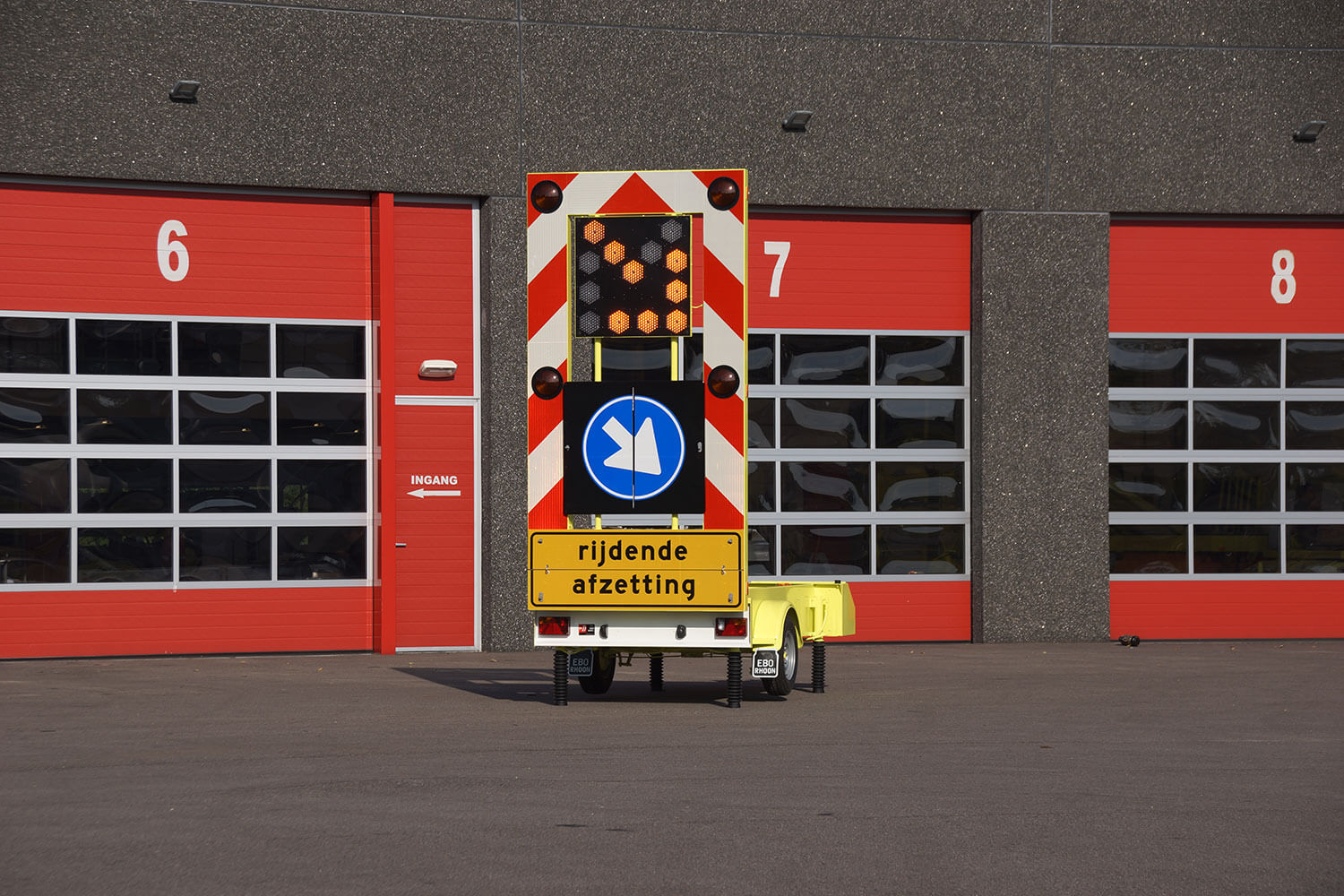

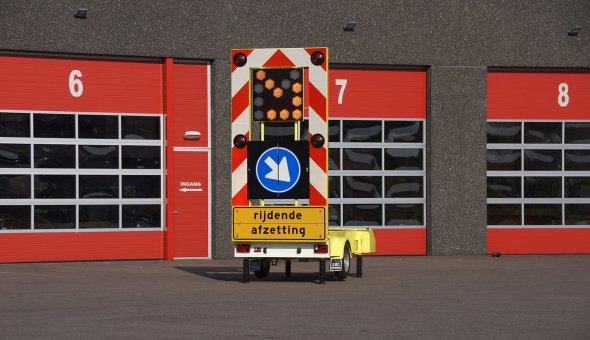

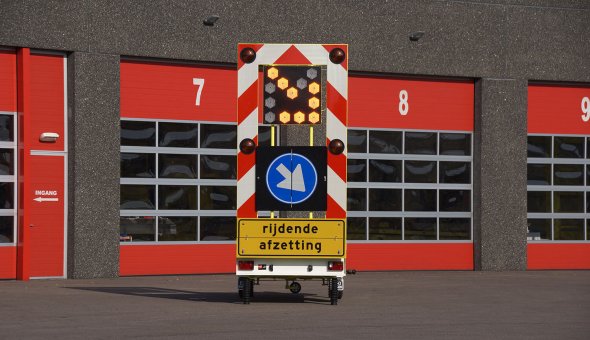

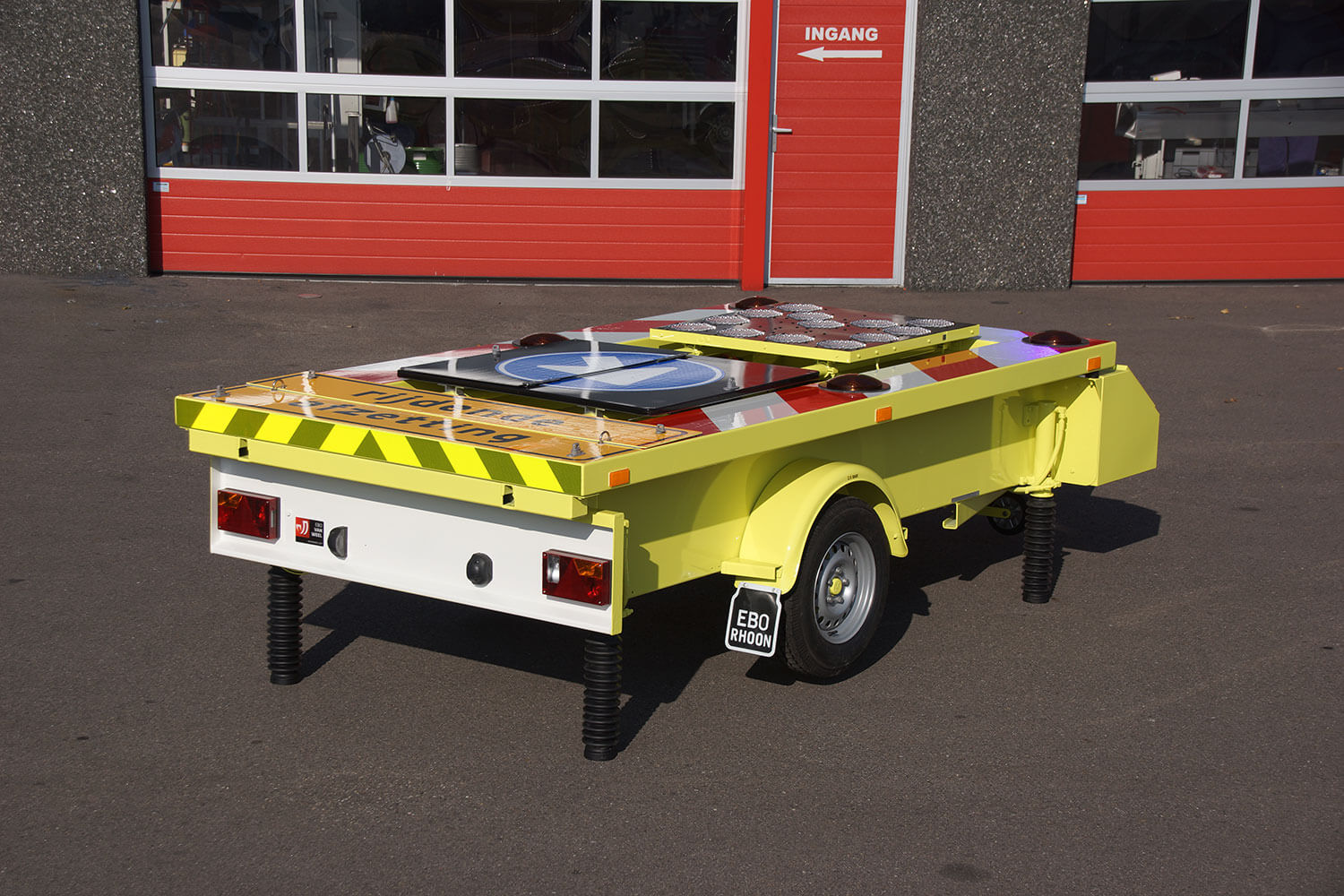

Furthermore, it is possible to choose for a remotely controlled LED arrow. Alternating LED lights enhance the visibility of the traffic warning trailer, which results in a safer situation for road workers.

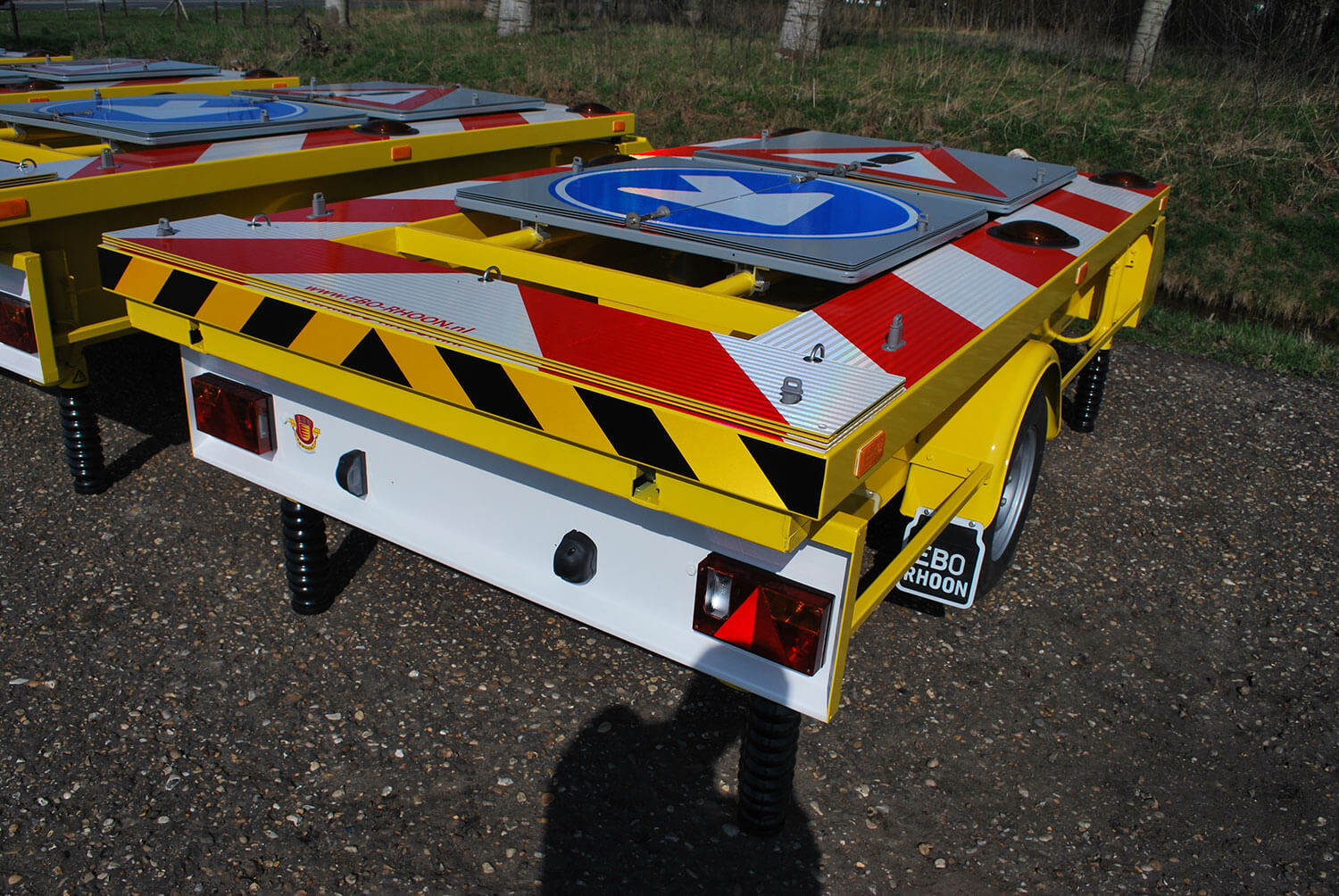

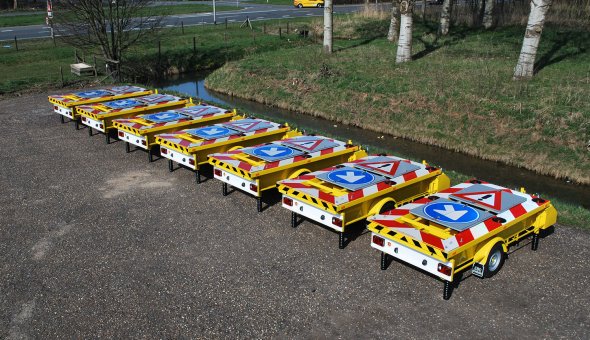

Arrow traffic warning trailer for Traffic management during road works

Fully hydraulic

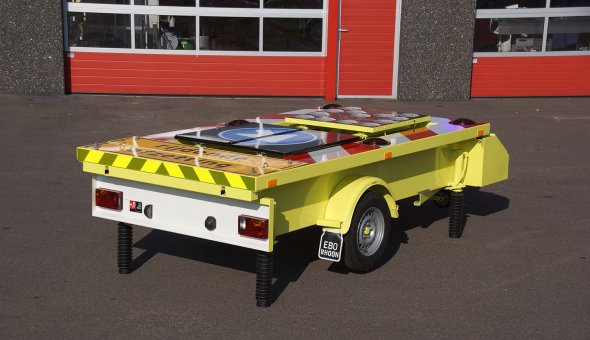

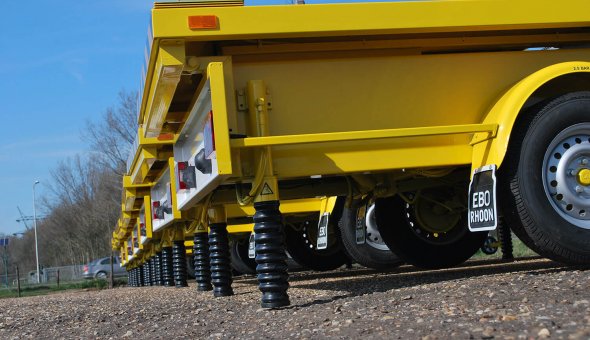

The frame and jacks of the traffic warning trailer are hydraulically operated, which decreases the set-up time of the trailer when arriving at roadworks and calamities. The hydraulic actions are carried out from the vehicle using a joystick or radio-controlled remote, which increases the safety during the road cordon.

Arrow traffic warning trailer for Traffic management during road works

Traffic Fleet: simple, accessible and efficient

For online control and management of your trailer fleet, EBO van Weel offers an online internet application, which is completely developed in-house. We enable you to manage your complete trailer fleet online via PC, laptop, tablet or smartphone.

Traffic Fleet enables your traffic systems various Smart Mobility Applications

Get inspired!

Available options

  • Solar panel to make the trailer a stand-alone
  • Upper frame arrow with 13 LED lights (with or without a remote control)
  • All combinations of upper and lower traffic signs
  • Various rectangular supplementary traffic signs
  • LED trailer lighting
  • Three portable rumble strips
  • One spare wheel
  • Four synthetic outrigger pads
  • Page selector for local control of the LED display

Specifications

Dimensions

Length
4.770 mm
Width
1.770 mm
Height transport mode
1.150 mm
Height operational mode
4.030 mm

Weight

Net weight
750 KG
Technically permissible maximum masses
1.300 KG
Technically permissible maximum static mass on the coupling point
100 KG

Axles and suspension

Axles
1x WAP - WAG 135B 1.350 KG
Drawbar
WAP 15 / 15.1 – 1.500 KG
Brakes
Drum brakes
Tires wheelcombination
175R14C

Electric system

Voltage
12 Volt
Batteries
2 pieces (standard semi-traction)
Power batteries
2x 230 Ah (standard)
Battery charger
230 Volt / 40 A
Solar panels (optional)
1 piece
Maximum power solar panels
200 Wp

Lighting

Lightning
12 Volt (standard) - LED optional
Connection with the car
13-pole plug (standard)

Hydraulic system

Support legs
4 pieces (double-acting)
Jockey wheel
1 piece (double-acting)
Upper frame
Hydraulically lifted
Emergency control
Two valves located on the hydro unit
Hydro unit
2.000 Watt
Hydraulic oil
Tellus 15

Upper frame

Reflection
Class 3 according to your local specifications
Upper traffic sign
Up to 8 traffic signs - all configurations possible
Lower traffic sign
Up to 8 traffic signs - all configurations possible
Supplementary traffic sign
All texts possible

Arrow unit

LED
13 alternating LED lamps
Voltage
12 Volt

Other components

Storage space portable rumble strips
3 pieces (2000 x 225 x 30 mm)
Outrigger pads
4 pieces (400 x 400 x 40 mm)
Storage spare wheel
1 piece (175R14C)
Storage space cones
5 pieces with heavy foot
