VMS-trailer solar – VW 1800 S

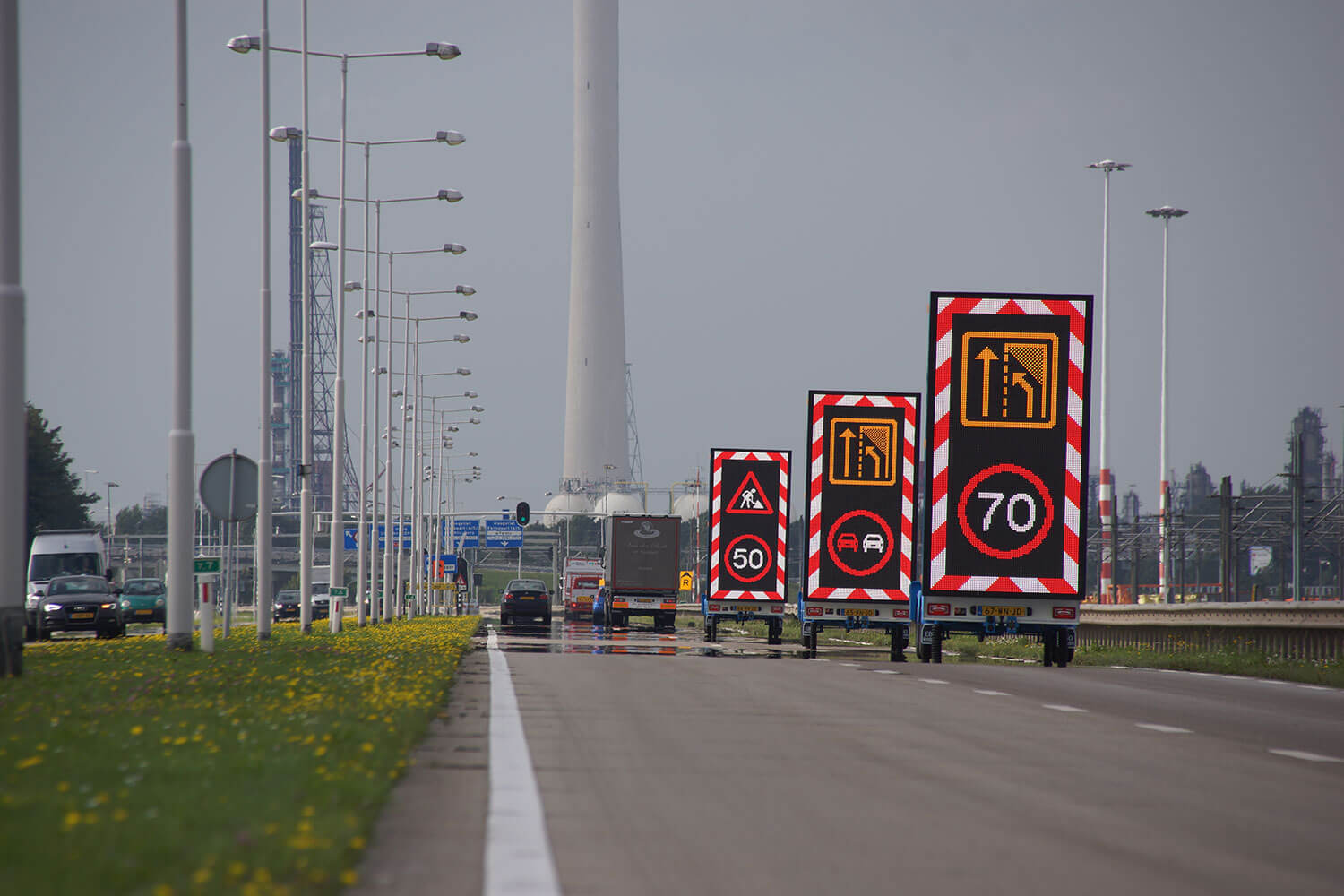

Mobile cordons can be used at night since July 2012. Before, mobile cordons were only allowed on the roads when the traffic flow was low and during daylight. Due to the increasing traffic flow roadworks could not be finished during the day and therefore accumulated. Mobile cordons are a solution for this issue, since these can be used at night on roads without lane signaling.
Unique LED display: improved readability and saving 87% in energy consumption
The VW 1800 S is delivered with a full-colour LED display, which is made in collaboration with the Austrian company Swarco Futurit and has been designed with the latest technology and is in accordance with NEN-EN 12966.
The LED display has got an unique lens technology, which focuses the light and therefore is only readable from determined distances. Furthermore, the LED pixels that are not in use do not consume energy, which results in an energy reduction of 87% compared to conventional LED displays.
Using solar power during the night
Thanks to a highly energy efficient LED display and solar panels the VW 1800 S is able to operate climate-neutral during the night. The solar panels that are connected to a battery pack, which creates an energy reserve during the day for prolonged use during the night. Thanks to this, costs for fuel, maintenance and transportation are reduced.
Produced in accordance with CE and EC regulations
Our VW 1800 S is completely produced in accordance with EC regulations and therefore received a EC type approval for the axles and suspension, which makes it possible to apply for a registration number in all European countries. Furthermore, does the VW 1700 S have a CE marking, which ensures that this VMS-trailer complies with all relevant European legal requirements.
Traffic Fleet: simple, accessible and efficient
For online control and management of your trailer fleet, EBO van Weel offers an online internet application, which is completely developed in-house. We enable you to manage your complete trailer fleet online via PC, laptop, tablet or smartphone.
Get inspired!
Available options
- Available in all RAL colours
- Two-tone spray painting
- Three solar panels including solar charger
- LED trailer lighting
- Three portable rumble strips
- One spare wheel
- Four synthetic outrigger pads
- Page selector for local control of the LED display
Specifications
Dimensions
- Length
- 4.770 mm
- Width
- 1.770 mm
- Height transport mode
- 1.150 mm
- Height operational mode
- 4.030 mm
Weight1
- Net weight
- 1.830 KG
- Technically permissible maximum masses
- 1.900 KG
- Technically permissible maximum static mass on the coupling point
- 100 KG
Axles and suspension
- Axles
- 2x WAP - WAG 135B 1.350 KG
- Drawbar
- WAP 24 / 35.1 – 2.000 KG
- Brakes
- Drum brakes
- Tires wheelcombination
- 175R14C
Electric system
- Voltage
- 24 Volt
- Batteries
- 4 pieces (standard semi-traction)
- Power batteries
- 4x 230 Ah (standard)
- Battery charger
- 230 Volt / 70 A
- Solar panels
- 3 pieces
- Maximum power solar panels
- 200 Wp
Lighting
- Lightning
- 12 Volt (standard) - LED optional
- Connection with the car
- 13-pole plug (standard)
Hydraulic system
- Support legs
- 4 pieces (double-acting)
- Jockey wheel
- 1 piece (double-acting)
- Upper frame
- Hydraulically lifted
- Emergency control
- Two valves located on the hydro unit
- Hydro unit
- 2.000 Watt
- Hydraulic oil
- Tellus 15
Upper frame
- Reflection
- Class 3 according to your local specifications
LED display
- Manufacturer
- Swarco Futurit
- Display
- 160 x 80 pixels
- Voltage
- 24 Volt
- Power
- 470 Watt
Other components
- Storage space portable rumble strips
- 3 pieces (2000 x 225 x 30 mm)
- Outrigger pads
- 4 pieces (400 x 400 x 40 mm)
- Storage spare wheel
- 1 piece (175R14C)
- Storage space cones
- 5 pieces with heavy foot
